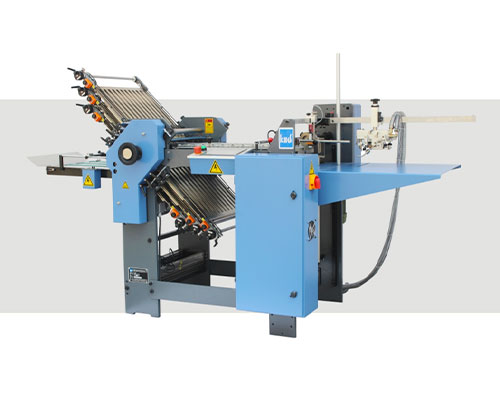

KMD 360T 6 buckles paper folder features a maximum paper size of 360*750mm.the machine is equipped with 6 buckle plates.it can directly realize 6 times parallel folding,and it can also be configured with 2 tail buckles,4 tial buckles,6 tail buckles,10 tail buckles according to the requirements to achieve different complex folding methods.

Category:

 Parameter of 360T 6 buckles paper folding machine

Max.feeding sheet size(W*L) 360*750mm
Min.feeding sheet size(W*L) 50*100mm
Sheet range 40-157g
Max.folding roller speed 180m/min
Max.height of paper heap 500mm
Machine power 3kw
Machine net weight(about) 400kg
Overall dimension(L*W*H) 2750*1000*1415mm

Brand of main parts

item brand origin
Touch screen Panasonic Japan
PLC Panasonic Japan
Power switch Schneider Germany
Sensor IFM china
Pump Yuxu China
bearing TNT Japan
Folding roller UV imported Germany
motor Delta China
Belt Aitom China

360T 6 Buckle sinstructions
