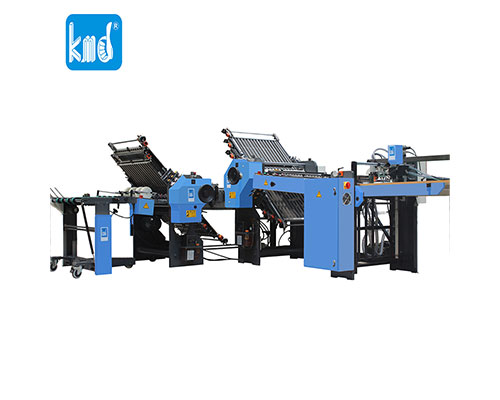

660T 6+4

KMD’s 660T buckle folder(6 buckles and 4 buckles):the paper achieve a 6 time parallel folding through the use of 6 buckles,and the tail buckles can be equipped to be either parallel or vertial within the machine in order to achieve 4 times horizontal parallel folds or 4 times vertical parallel folding,the folder is also capable of half folding,double parallel folding,roll folding and other folding methods

Parameter of 660T 6buckles+4tail buckles paper folding machine

Max.feeding sheet size(W*L) 660*1040mm
Min.feeding sheet size(W*L) 150*200mm
Min.folded sheet size(W*L) 35*50mm
Sheet range 40-180g
Max.folding roller speed 180m/min
Max.height of paper heap 650mm
Machine power 5.5kw
Machine netweight 2200kg
Overall dimension(L*W*H) 5200*1450*1600mm



Brand of main parts

item brand origin
Touch screen Panasonic Japan
PLC Panasonic Japan
Power switch Schneider Germany
Sensor IFM china
Pump Yuxu China
bearing TNT Japan
Folding roller UV imported Germany
motor Delta China
Belt Aitom China

660T 6+4 instructions
