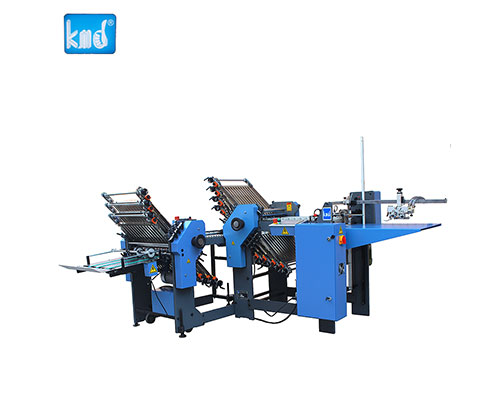

KMD’s 470T buckle folder(6 buckles and 4 buckles):this machine carries out a 6 times parallel folding through 6 buckles,with the tail buckles able to be equipped in both a horizontal or vertical manner,so that the machine carries out 4time parallel folding and 4 time vertical folding.the folder itself carries out half folding,double parallel folding,roll folding and more.

Category:

Parameter of 470T 8 buckles+4 tail buckles paper folding machine

Max.feeding sheet size(W*L) 470*750mm
Min.feeding sheet size(W*L) 50*100mm
Min.folded sheet size(W*L) 20*50mm
Sheet range 40-180g
Max.folding roller speed 180m/min
Max.height of paper heap 500mm
Machine power 3.75kw
Standard Pneumatic pump 40#
Machine netweight(about) 950kg
Overall dimension(L*W*H) 4000*1100*1415mm



Brand of main parts

item brand origin
Touch screen Panasonic Japan
PLC Panasonic Japan
Power switch Schneider Germany
Sensor IFM china
Pump Yuxu China
bearing TNT Japan
Folding roller UV imported Germany
motor Delta China
Belt Aitom China

470T 6+4 instructions
